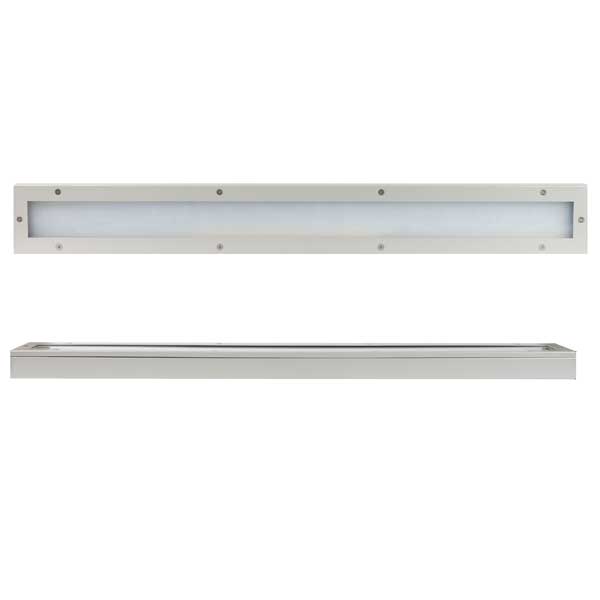

S-LED
[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_single_image image=”12003″ img_size=”80×80″ css=””][/vc_column][/vc_row][vc_row][vc_column][stm_separator color=”custom” sep_width=”100%” sep_height=”5″ custom_color=”#B4B3B3″][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_column_text css=””]
The S-LED is an Energy Efficient, Tunnel and Underpass Lighting Luminaire, ideally suited to Pedestrian and Vehicle Underpasses, Railway Stations, Bus Shelters, Transport Hubs, Police Stations and areas of low visibility.
The S-LED facilitates safe movement of vehicles, pedestrians and cyclists, allowing clear identification of objects and people, making it a suitable luminaire for areas prone to crime and vandalism.
The S-LED2 in stainless steel is designed for areas where hygiene and sanitation is a priority.

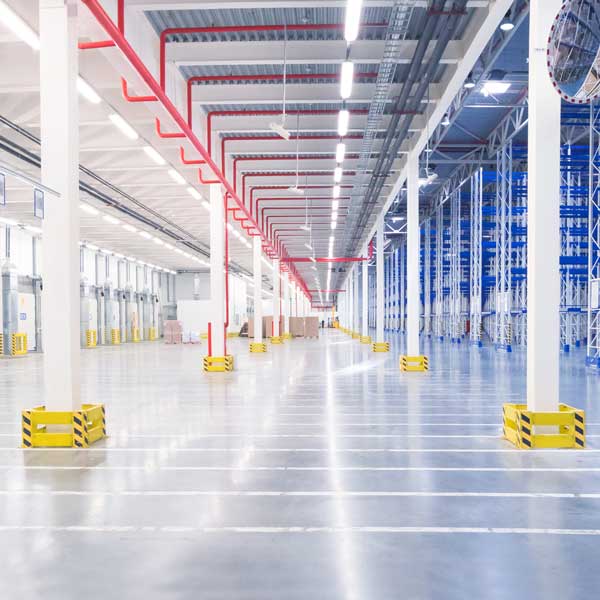

The S-LED2 produces adequate natural light needed for the inspection of cleanliness, whilst the stainless steel housing is easily sanitized. Making this light suitable for the food industry, dairies, brewing, canning and bottling plants, poultry farms, frozen foods, and warehousing as well as chemical and biohazard environments.
Wattages 20W, 30W, 40W, 60W, 80W.

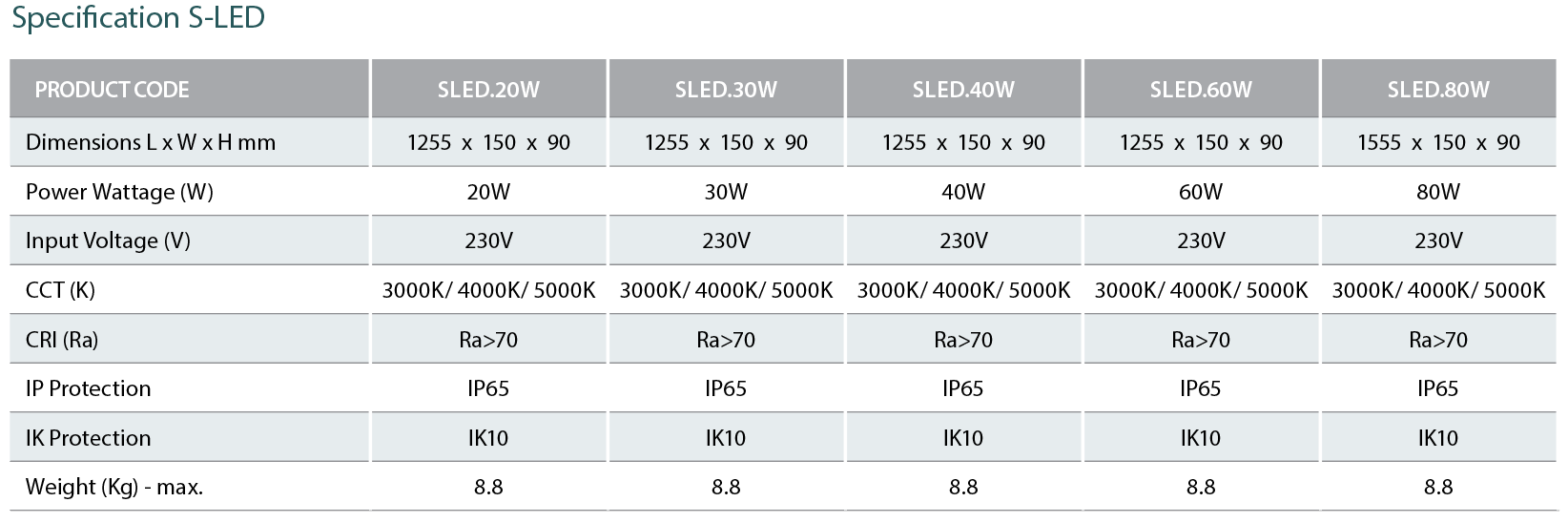

[/vc_column_text][stm_button button_pos=”left” button_border_color=”#db291d” button_border_color_hover=”#000000″ button_bg_color=”#db291d” button_bg_color_hover=”#000000″ button_text_color=”#ffffff” button_text_color_hover=”#ffffff” link=”url:https%3A%2F%2Fwww.trafficltd.com.au%2Fwp-content%2Fuploads%2F2025%2F03%2FS-LED-S-LED-2-V.3.0-email.pdf|title:Download%20Catalogue” c_class=”no_separator”][stm_spacer height=”20″][vc_tta_accordion active_section=”1″ collapsible_all=”true”][vc_tta_section i_icon_fontawesome=”stmicon-chevron-bottom” add_icon=”true” title=”S-LED SPECIFICATIONS” tab_id=”1741126853562-d51402e1-3012″][vc_single_image image=”12270″ img_size=”full” alignment=”center” onclick=”custom_link” img_link_target=”_blank” css=”” link=”https://www.trafficltd.com.au/wp-content/uploads/2019/04/Como-P.png”][/vc_tta_section][vc_tta_section i_icon_fontawesome=”stmicon-chevron-bottom” add_icon=”true” title=”Suitable For” tab_id=”1741052408502-ce822e5b-24e5″][vc_single_image image=”12274″ img_size=”450X40″ css=””][vc_column_text css=””]
- Tunnels
- Underpasses

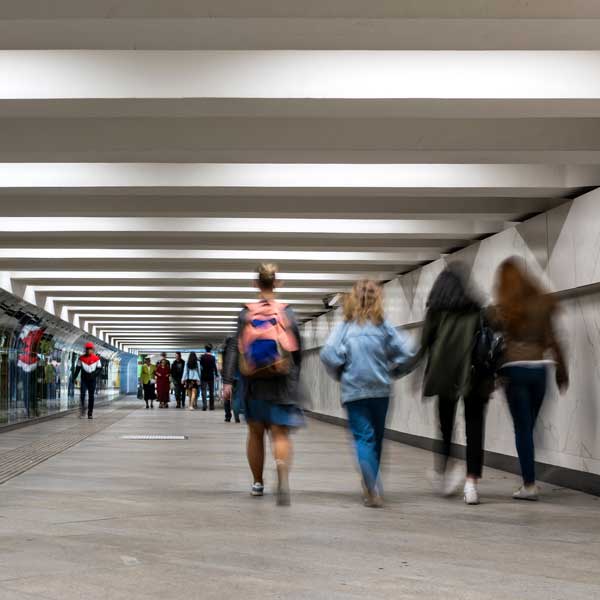

- Pedestrian Underpasses

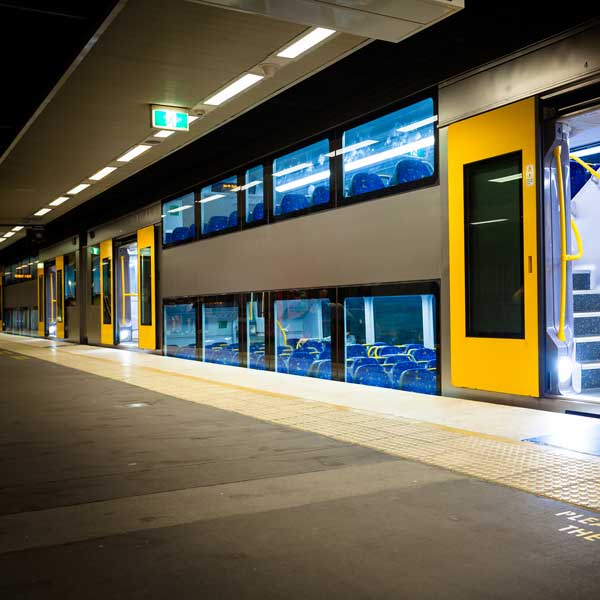

- Rail Stations
- Transport Hubs
- Police Stations
- Adverse Locations
[/vc_column_text][/vc_tta_section][vc_tta_section i_icon_fontawesome=”stmicon-chevron-bottom” add_icon=”true” title=”Technical Data” tab_id=”1741223642558-447e7bb2-f411″][vc_column_text css=””]
- Body: Formed Aluminium – Marine Grade
- Optics: T2 – T3
- Wattage: 20 – 30 – 40 – 60 – 80 Watts
- Finishing: Powder Coat (Grey Standard)
- Fixing: Ceiling or Wall
- Mounting: 3 – 6 Metres
- IP rating: IP65
- IK rating: IK10
- Voltage: 230VAC 50/60Hz
- Power Factor: >0.9
[/vc_column_text][/vc_tta_section][vc_tta_section i_icon_fontawesome=”stmicon-chevron-bottom” add_icon=”true” title=”Features” tab_id=”1741052841650-0d87e3d0-8da1″][vc_column_text css=””]
- Suitable for pedestrian and vehicle underpass, railway stations, transport hub, police stations and adverse locations that are subject to vandalism
- Designed to comply with stringent AS/NZ standards
- High performance LED & Optics to meet AS/NZ standards
- Integrated thermal management
- Removable driver and LED module
- End-to-end mounting
- Smart City compatible – TST
- 10 year warranty
[/vc_column_text][/vc_tta_section][vc_tta_section i_icon_fontawesome=”stmicon-chevron-bottom” add_icon=”true” title=”Options” tab_id=”1741052408512-1872cbd3-a254″][vc_column_text css=””]
- Flat diffuser IK10: (Aero)
- Fuse Terminal Block: (FTB)
- Surge Protection Device: (SPD – 10KVA, 20KVA)
- Class II: (DB – Double Insulated)
- Colour: Black (BL), White (WH), Grey (GR – Standard)
- CCT: 3000K, 4000K (Standard), 5000k
- Controller: RS485 compatible lamp driver: (TST:LCU12R)
- TST compatible: (TST:SCU02)
