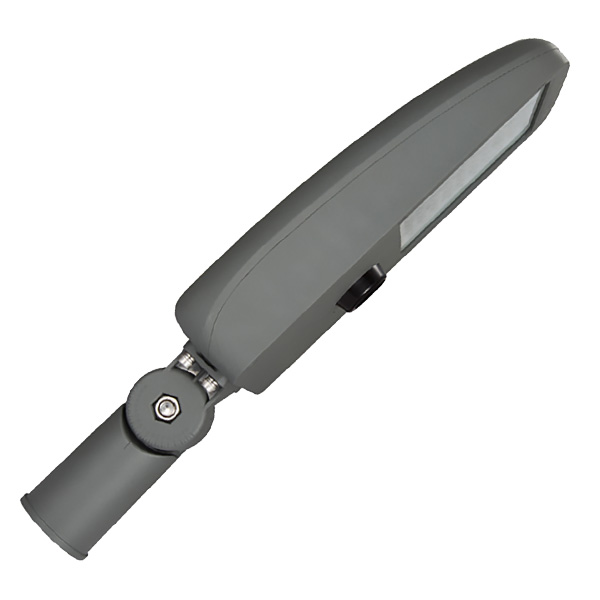

P-LED II

The P-LED II new generation P Cat Street light, embraces both high performance and functionality in design. An energy efficient road lighting luminaire. Designed with an advanced LED Optical System, that sets new standards for ‘P’ Category Roadway Lighting. Available in 30W.

Now available with optional ZHAGA:

ZHAGA, is the next generation of Street Lighting Controller socket, and is mounted onto our fittings and operated through a plug-and-play installation. It is the latest alternative, more compact DC connector, developed especially for today’s contemporary designed LED light fittings. Zhaga D4i Certified P-LED fittings are future proof and available with both Zhaga and NEMA sockets. Developed according to a global lighting industry standard, Zhaga connectors can be deployed onto the P-LED range and integrated with our TST Smart City Solutions and Dali2.

P-LED Options Include:

- Zhaga: Street Lighting Controller
- Dali2
- Fuse Terminal Block: (FTB)
- Surge Protection Device: (SPD20KVA)
- Class II: (DB – Double Insulated)
- Colour: Grey (GR Standard), Black (BL), White (WH),
- CCT: 3000K, 4000K (Standard), 5000K
- Visor: Glareshield/spill light kit (GV)

Suitable For

- ‘P’ Category Roadways
- Suburban Roads
- Walkways
- Parks
- Including ‘P4’ & ‘P5’
- Driveways
- Car Parks
- Security Lighting

Features

- SmartCity Ready – TST compatibility Zigbee, LoRa, NBIoT
- High Performance Street Lighting luminaire designed to meet stringent Australian/New Zealand standards
- High Performance Optics designed to comply and meet Australian standards AS 1158.3.1 Cat. P
- Direct replacement of conventional P-category Mercury Vapour, Metal Halide, High Pressure Sodium and Fluorescent luminaires
- Integrated thermal management
- Segregated termination chamber c/w quick access latch
- Self cleaning housing and PMMA optical diffuser
- Semi-cutoff (SD – Std) and Aero screen diffusers (AE)
- 20 year design life
- 10 year warranty

Specifications

- Body: High Pressure Marine Grade Die Cast Aluminum
- Optics: P4 & P5 Distribution
- LED: CREE
- Wattage: 11 – 14 – 20 – 27 – 57 Watts
- Finishing: Powder Coat Grey (Grey Standard)
- Mounting: 4 – 9 Metres
- Fixing: Side Spigot Mount (27-35mm OD)
- IP rating: IP66
- IK rating: IK06
- Voltage: 220V – 240V 50/60Hz
- Power Factor: >0.9
- Nema: Nema 7 receptacle (std)
- Surge Protection Device (SPD) : 10KVa Standard

Download Catalogue

1 / 6

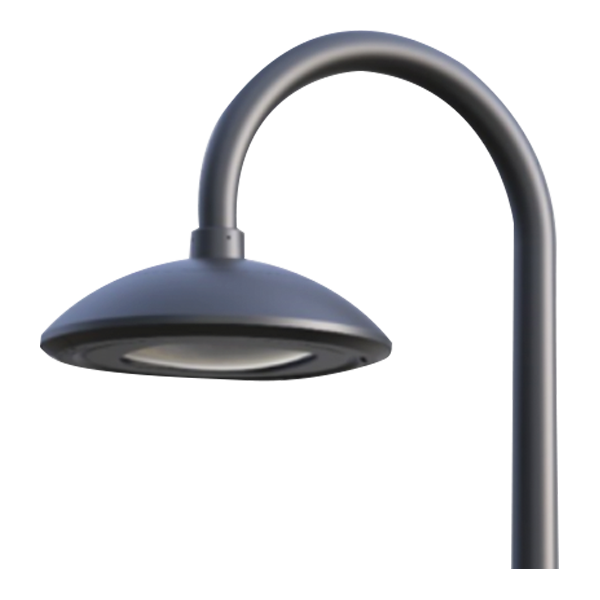

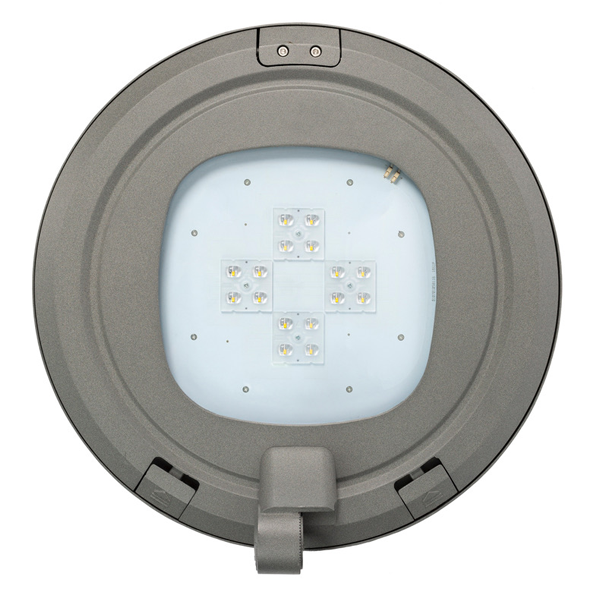

Como

The COMO is a contemporary, LED energy efficient, low profile, street and area lighting system to suit today’s ever changing landscape and to withstand the test of time.

The Como range comes in four wattages and four mounting configurations; catenary, post top, side spigot and top spigot mounts.

Options Include

- Photocell: 7-pin Nema receptacle (7PN)
- Fuse Terminal Block: (FTB)
- Surge Protection Device: (SPD – 10KVA, 20KVA)
- Class II: (DB – Double Insulated)
- Colour: Black (BL), White (WH), Grey (GR-Standard)
- CCT: 3000K, 4000K (Standard), 5000K
- Visor: Glareshield/spill light kit (GV)

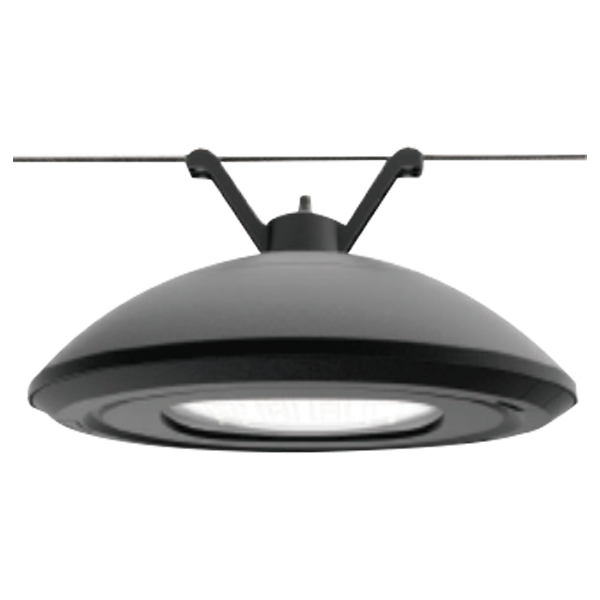

COMO C - Catenary Wire or Surface Mount
